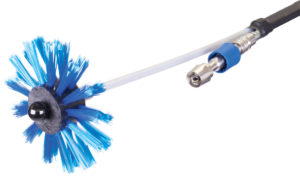

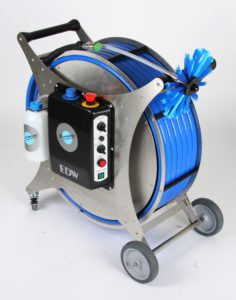

EDW- Electric Duct Washers

For foaming, brushing and rinsing ducts, pipes and chutes up to Ø500mm

Overview

EDW, Electric Duct Washer is an electric brushing device with integrated washing functions. Ideal for cleaning greased ducts in small- to medium sized industrial kitchens.

Due to it’s compact size and powerful electric motor, EDW can be operated in areas with very limited space for cleaning equipment, where the use of compressed air is not possible.

EDW can be used also for ventilation duct cleaning.

EDW is sutitable for spraying chemical solutions, foaming, brushing, rinsing and disinfecting ducts, pipes and chutes up to Ø500mm and length of 20m

Advantages:

  • Portable and lightweight
  • Can be operated by a single person
  • Can be operated in areas with limited space
  • Works with most high pressure washers
  • Adjustable stepless rotation speed
  • Wireless remote controls
  • Adjustable chemical dosage (Optional)
  • Wireless remote control of water and chemical supply start/stop (Optional)
  • Can be used also for air duct cleaning
Technical Data
Technical data EDW
Dimensions (LxWxH): EDW-15: 700x460x700mm, EDW-20 700x540x700mm
Weight:  EDW-15 (Al) 36kg, EDW-20 (Al) 39kg, EDW-15 (SS) 49kg, EDW-20 (SS) 52kg
Operating range: Ø100 – Ø500mm round ducts, up to 20m long
Length: 15 or 20m
Water supply: Max. 90°C, 150 Bar
Electric supply: 1-230VAC 50/60Hz / 6A fuse
Brushing directions: Clockwise and counter-clockwise
Brushing speed: Stepless 200-1100 rpm
Washing functions: Spray, Foam, Brush, Rinse, Disinfect
Accessories included in all devices: Set of spraying / Rinsing nozzles (3 pcs),Wireless remote controls, Toolbox with required tools and accessories.
EDW Versions, Sets and Accessories
Product Product Code
EDW-15 DuctWasher – Electric Duct Washing Machine (15m reel) 201.005.001
EDW-15S DuctWasher – Electric Duct Washing Machine (15m reel & stainless steel frame) 201.005.011
EDW-20 DuctWasher – Electric Duct Washing Machine (20m reel) 201.005.002
EDW-20S DuctWasher – Electric Duct Washing Machine (20m reel & stainless steel frame) 201.005.012
EDW-15 Basic set 201.005.101
EDW-15S Advanced set 201.005.211
EDW-15S Professional set 201.005.312
  Accessories for EDW15/20:
  Wireless remote control of EDW (water and chemical solution start/stop) 203.005.001
  Brush sets for EDW/CS:
  Brush set (8pcs) Ø100-Ø500, Hard 211.002.101
  Brush set (8pcs) Ø100-Ø500, Extra Hard 211.009.102
  EDW/CS Centering brush set (3pcs) for Ø250-Ø500mm ducts 211.101.003

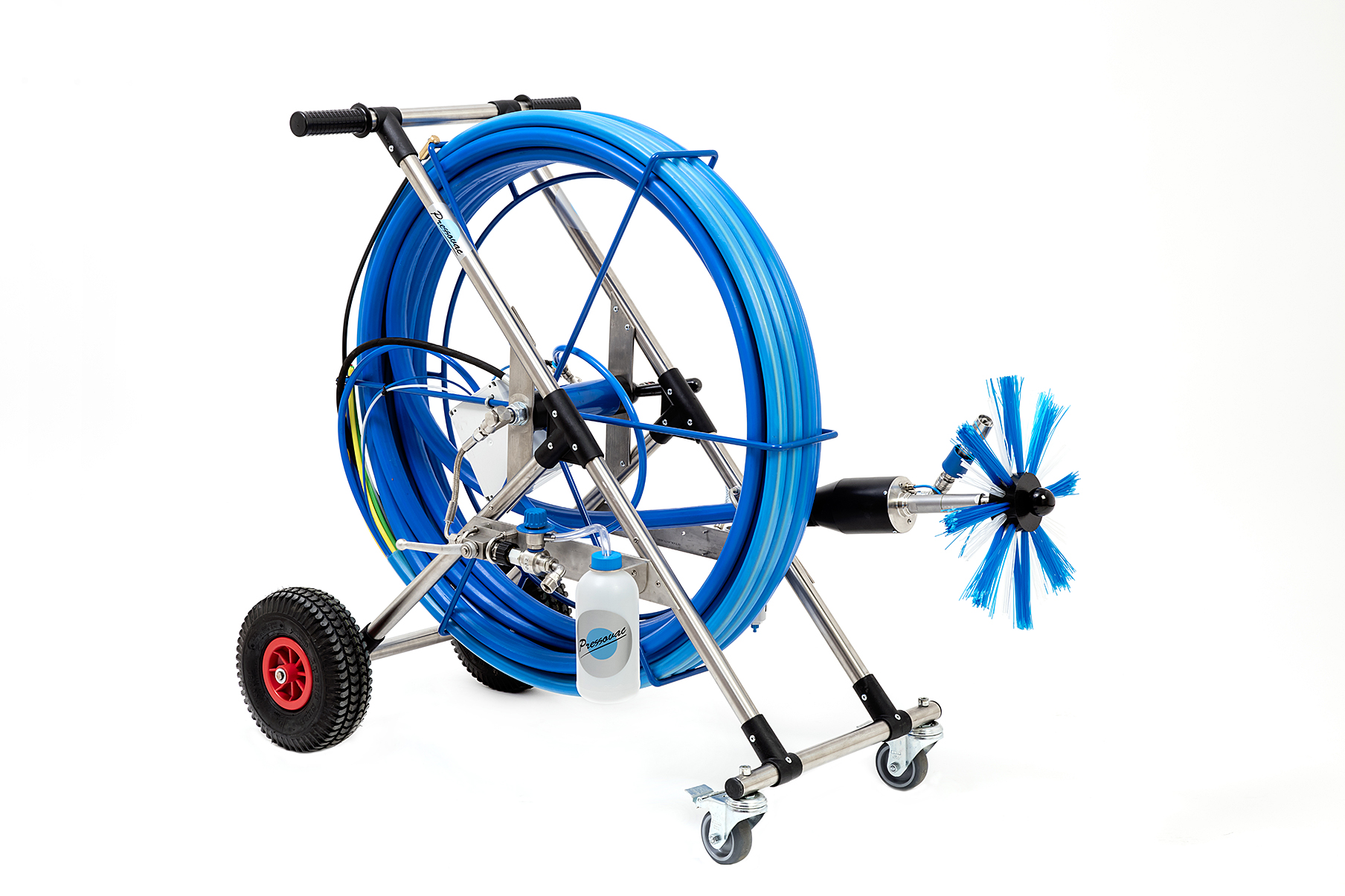

PDW – Pneumatic Duct Washers

For foaming, brushing and rinsing ducts, pipes and chutes up to Ø800mm

Overview

PDW, Pneumatic DuctWasher is a pneumatic brushing device with integrated high-pressure washing functions.

Due to it’s powerful pneumatic motor and stainless steel frame, PDW is ideal for cleaning greased round- adn rectangular ducts in medium and large sized industrial kitchens. PDW can be also used for brushing air ducts.

PDW is suitable for spraying chemical solutions, foaming, brushing, rinsing and disinfecting ducts, pipes or chutes for up to Ø800mm and 40m long

Advantages:

  • Portable, robust and lightweight
  • Powerful pneumatic brushing motor
  • Works with most high pressure washers
  • Clockwise or counter-clockwise rotation
  • T-adaptor for cleaning rectangular ducts (optional)
  • Wireless remote controls (optional)
  • Adjustable chemical doser (optional)
  • Can be used for air duct cleaning
Technical Data
Technical data PDW
Dimensions (LxWxH): 940 x 600 x 990mm
Weight:  36kg (PDW-25), 39kg (PDW-30), 45kg (PDW-40)
Operating range: Ø200 – Ø800mm round ducts, up to h500mm in rectangular ducts
Length: 25, 30 or 40 meters
Water supply: Max. 90°C, 150 Bar
Motor type: Bi-directional pneumatic motor, 4Nm torque, air consumption 300l/min @6 Bar
Brushing directions: Clockwise and counter-clockwise
Washing functions: Spray, Foam, Brush, Rinse, Disinfect
Accessories included in all devices: Set of spraying / Rinsing nozzles (3 pcs), filter/regulator unit with automatic motor lubricator, Toolbox with required tools and accessories.
PDW Versions, Sets and Accessories
Product Product code
  PDW-25 DuctWasher – Pneumatic Duct Washing Machine (25m reel & stainless steel frame) 36kg 201.004.011
  PDW-30 DuctWasher – Pneumatic Duct Washing Machine (30m reel & stainless steel frame) 39kg 201.004.012
  PDW-40 DuctWasher – Pneumatic Duct Washing Machine (40m reel & stainless steel frame) 45kg 201.004.013
PDW-Sets (ask more info of the contents from our sales)
  PDW-25/30/40 Basic set 201.004.111
  PDW-25/30/40 Advanced set 201.004.211
  PDW-25/30/40 Professional set 201.004.311
Accessories for PDW25/30/40:
  Wireless remote control of motor (on/off switch) 203.004.001
  Automatic direction change of brushing rotation 202.002.001

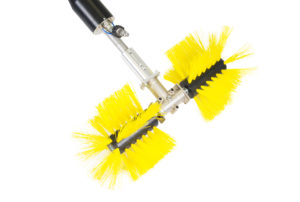

  T-brushing adapter for PDW (w/ support wheels & plates) for rectangular ducts 204.004.004
  Supporting plates for round brushes, 5pcs (Ø315-Ø800) 212.001.001
  Centering brush set (3pcs) for PDW (Ø500-Ø800mm ducts) 211.101.004

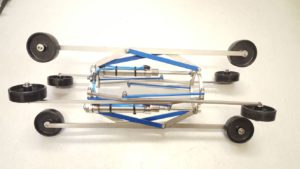

  Pneumatic brush centralizer for PDW (Ø315-Ø800mm ducts) 204.004.003
  K-370 Air Compressor 230V/10A/370L/6bar 210.001.001
Nozzles and other accessories for PDW

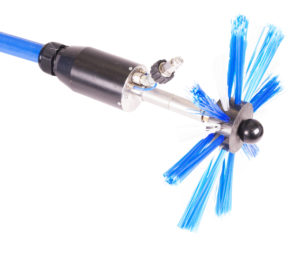

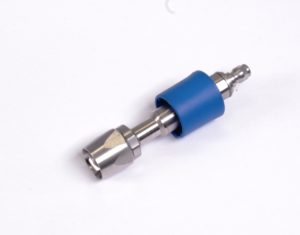

  Foaming nozzle for EDW/PDW/CS 219.001.001
  Rinsing nozzle set (3 nozzles) for EDW/PDW/CS 219.001.102

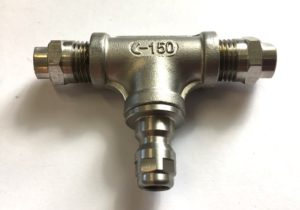

  Rinsing T nozzle with 65 degrees & quick connector 219.001.002

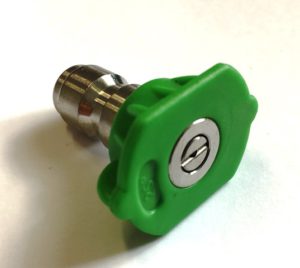

  Rinsing nozzle with 25 degrees opening & quick connector 219.001.003

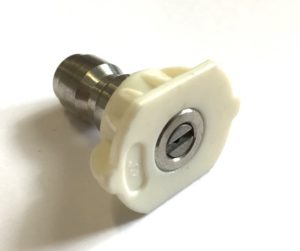

  Rinsing nozzle with 40 degrees opening & quick connector 219.001.004
  Disinfection nozzle w/ quick connector for EDW/PDW/CS 219.005.003
  Foaming kit for EDW/PDW (Foaming nozzle, chemical doser, chemical holder) 219.001.101
  FT-24, Foaming/Disinfecting Tank, Stainless Steel, 24 Liter, 10m Hose, 24″ Lance. 213.002.001
Hot Water High Pressure Washer

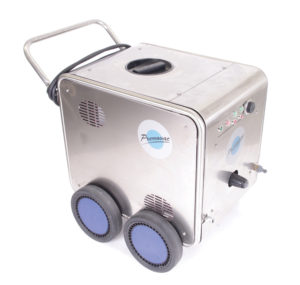

  HW-45T HotWasher – Electric hot water high pressure washer (16,5kW/ 400VAC/ 140 Bar) with 40L water tank 218.001.145
Brush sets for round ducts:
  Brush set for round ducts, Standard (7 pcs) Ø200-Ø800* 211.001.103
  Brush set for round ducts, Hard (7 pcs) Ø200-Ø800* 211.002.103
  Brush set for round ducts, Extra hard (7 pcs) Ø200-Ø800* 211.009.103
Brush set for rectangular ducts:
  Brush set for rectangular ducts, Standard (2×5 pcs)*** 211.003.101
  Brush set for rectangular ducts, Hard (2×5 pcs)*** 211.004.101
  Brush set for rectangular ducts, Extra Hard (2×5 pcs)*** 211.010.101

*) 7 pcs: 1xØ200mm, 1xØ250mm, 1xØ315mm, 1xØ400mm, 1xØ500mm, 1xØ630mm, 1xØ800mm

***) 2×5 pcs: 2xØ200mm, 2xØ250mm, 2xØ300mm, 2xØ400mm, 2xØ500mm
